Đầu dò khí Carbon

Liên hệ

Mô tả :

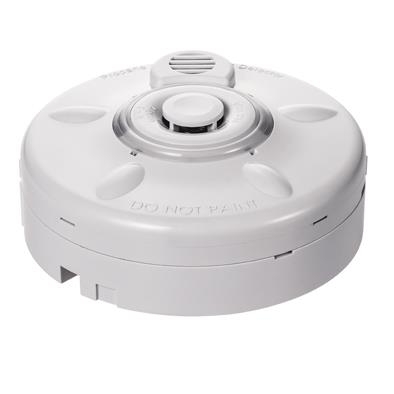

Đầu dò khí Carbon QA-23, điện áp hoạt động 12/24VDC

Thông tin sản phẩm

Characteristics

Carbon Monoxide is a colorless, odorless, tasteless and highly toxic gas. It will reduce the oxygen in body's hemoglobin and cause damage to the brain. Our QA23 is equipped with a precise and low power-consumption sensor. With high efficiency microprocessor-based analysis, it can be triggered under different carbon monoxide concentrations.

- High luminous dual LEDs to indicate different status.

- Green LED to confirm the unit is under normal operation.

- Each visible and audible warning has 4 modes to easily identify current status.

- Test button for alarm simulation.

- Dual power input: 12VDC and 24VDC operation in the same unit. No adjustment is required.

- Optional 110VAC or 220VAC adaptor is available.

Specifications

Model	QA23
Power Source	24V DC	12V DC
Standby Current	1 ~ 25 mA	1 ~ 20 mA
Alarm Current	10 ~ 85mA	10 ~ 55mA
Sensitivity	50 ppm : 60 ~ 90 min 100 ppm: 10~ 40 min 300 ppm: within 3 min
Warm-up Period	About 3 minutes
Alarm Sound	70dB/3M and above
Indicator	Standby: Red LED flashes every 60 sec Early warning: Red LED flashes every 3 sec and beeps every 3 sec Alarm: Red LED flashes and beeps every sec Fault: Red LED flashes and beeps every 10 sec
Ambient Temperature	-10^oC ~ +55^oC
Dimensions	102 mm (Dia.) x 40.5 mm(H)
Weight	About 150g
